Length Closed Length: 45 FT (13,720mm) – including the ramps
Extended Length: 70Ft (21,300mm) – including the ramps
Height (bottom deck) 20 inch axles: 1150mm
19.5 inch axles: 1080mm
15 inch axles: 990mm
Capacity (ATM) ATM: 45 Tonnes
Capacity (GTM)ATM: 25 Tonnes
Tare Weight: Without Bi-Fold Ramps: 10.4 Tonnes
With Bi-Fold Ramps: 11.1 Tonnes

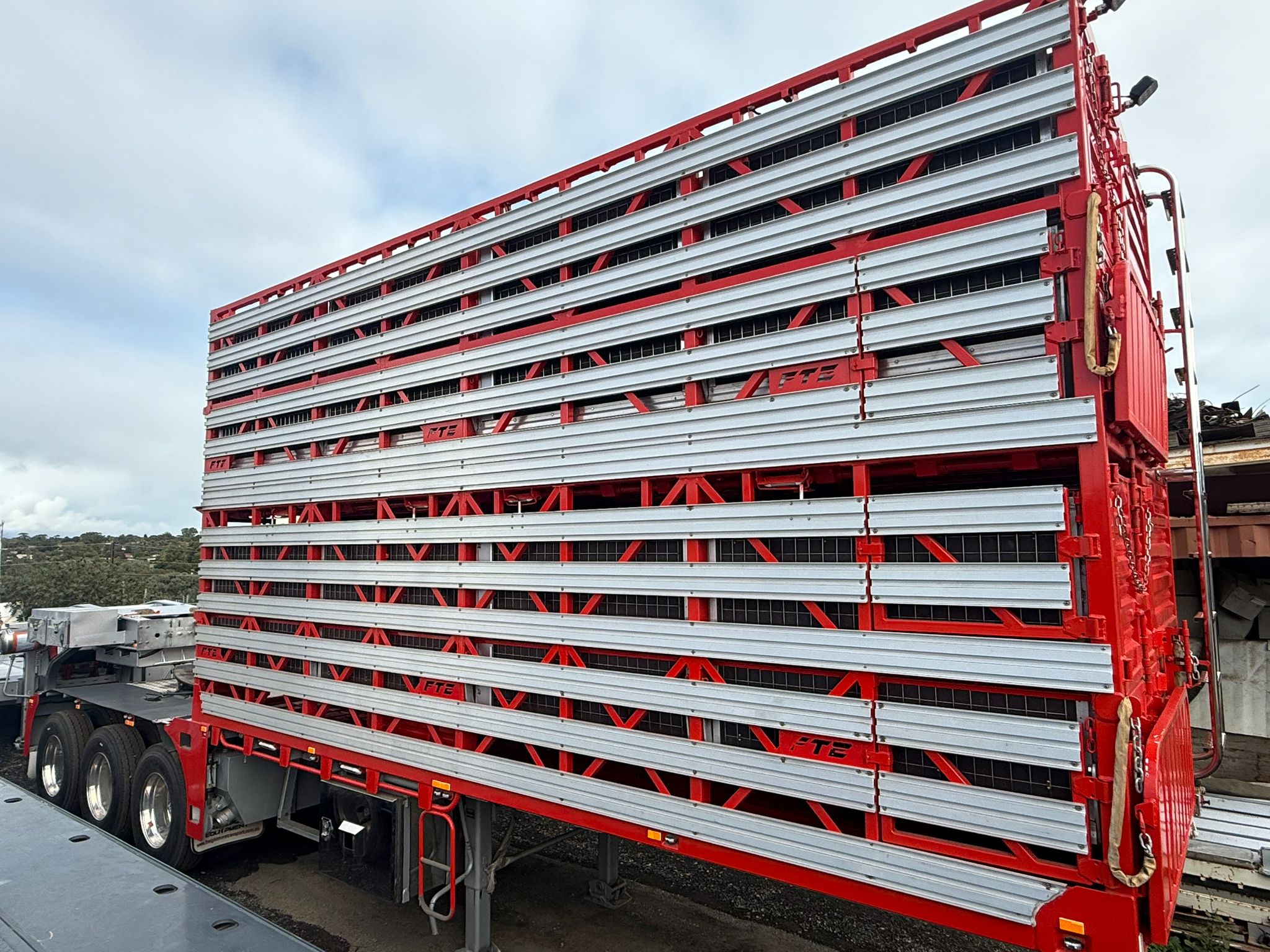

Side Coaming 8mm Thick Cold-Rolled sheet steel. Tensile Strength = 650mPa

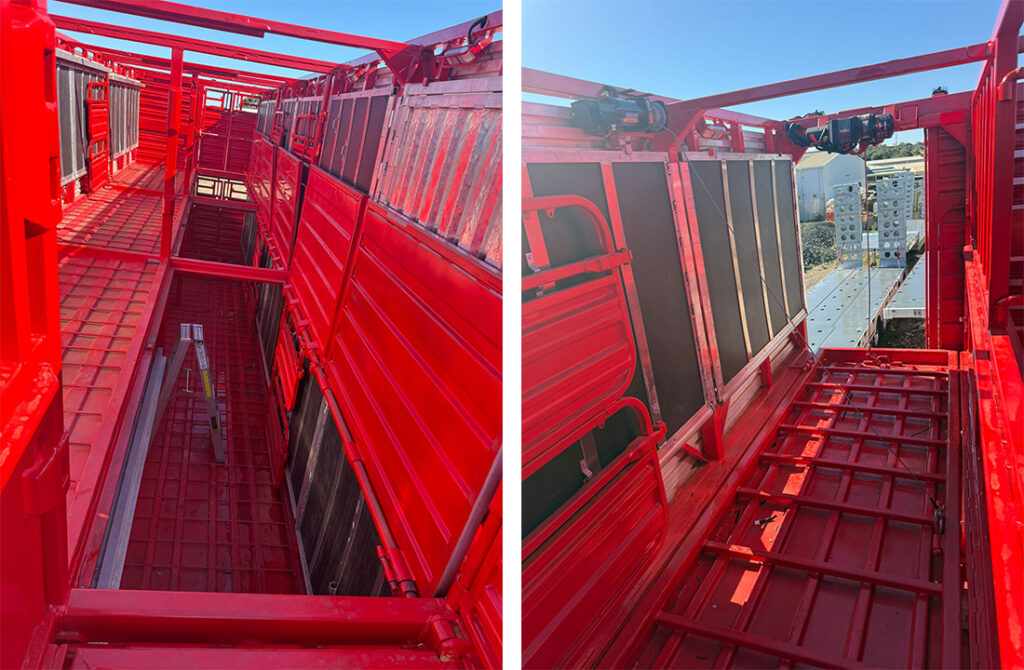

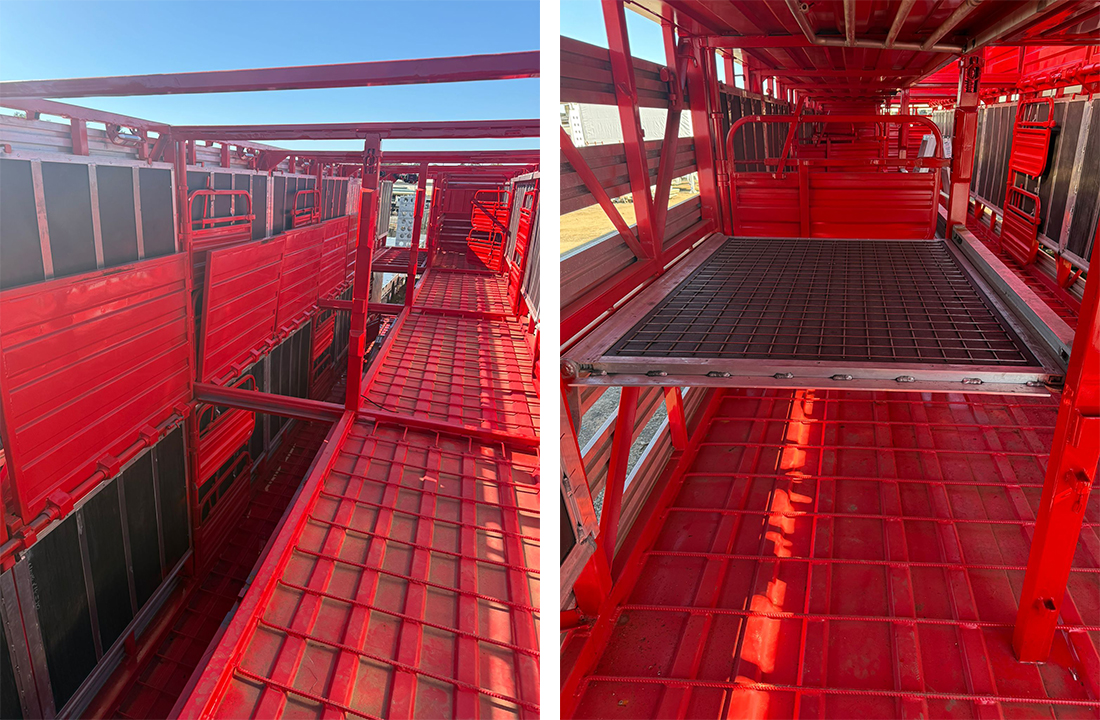

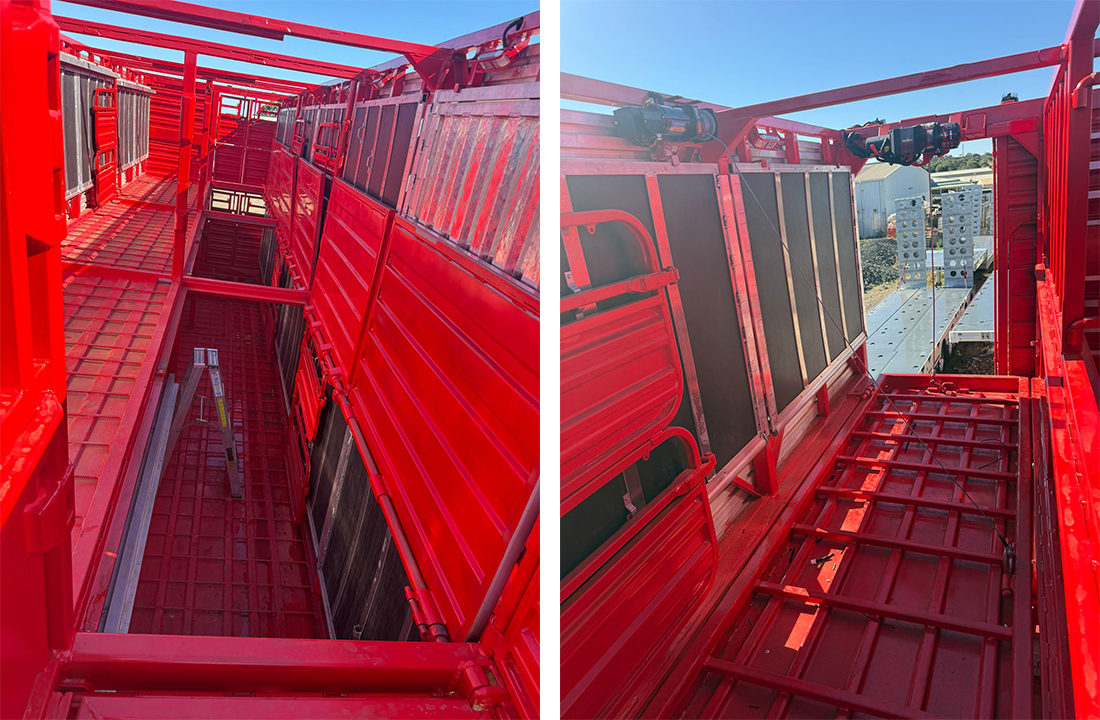

Flooring 5mm Chequer-Plate flooring, mild steel at 350mPa tensile. Under-Floor construction consists of heavy duty I-Beam cross-members, with 30 x 30 x 3mm under-floor runners for extra support.
Skid-Plate 12mm Thick Skid-Plate, with two position bolt-on king pin boss-plates fitted as standard.
Road-Train Bracket 20mm thick folded C-Channel. With extra support gussets. Constructed from 350mPa mild steel.

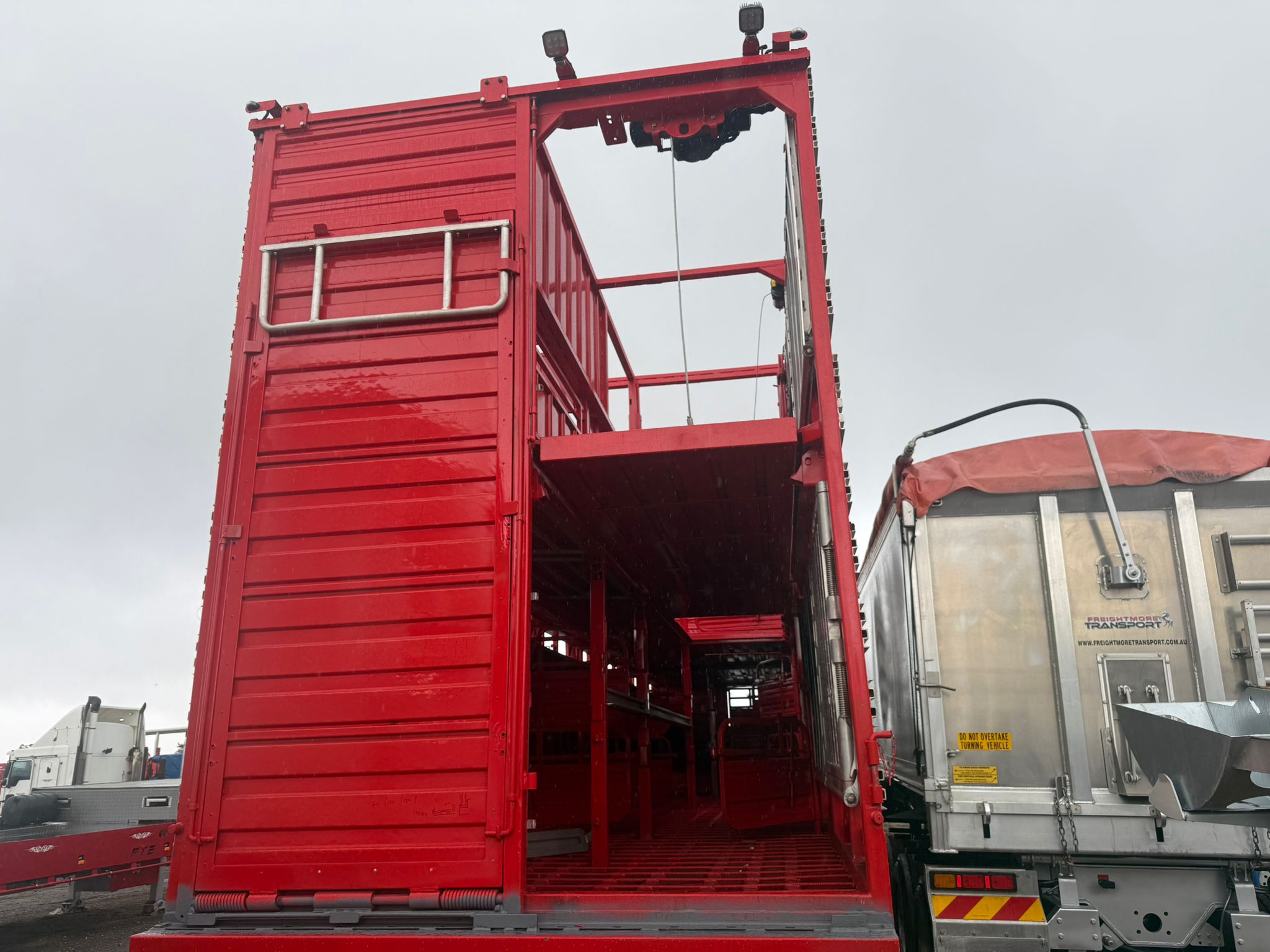

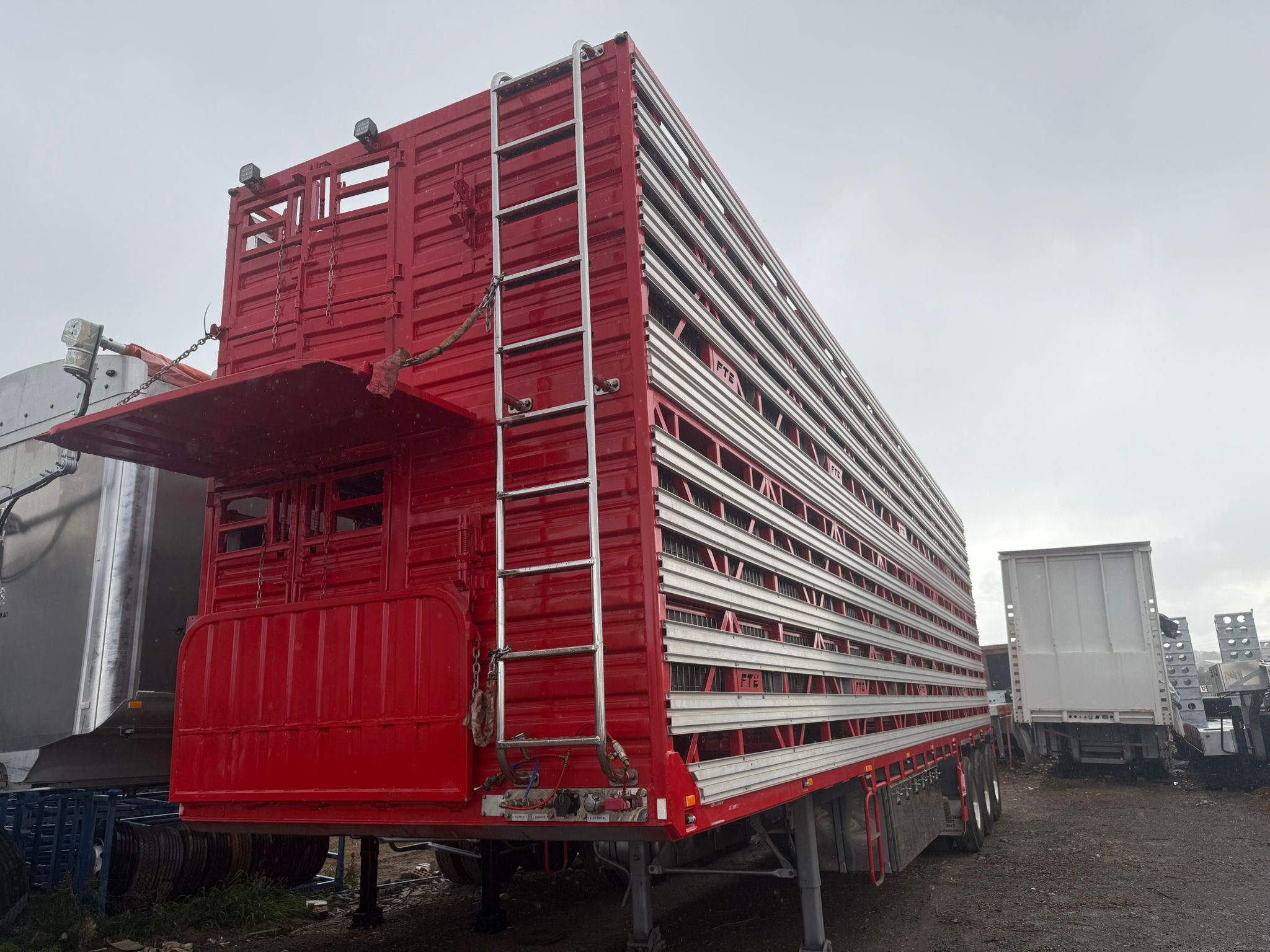

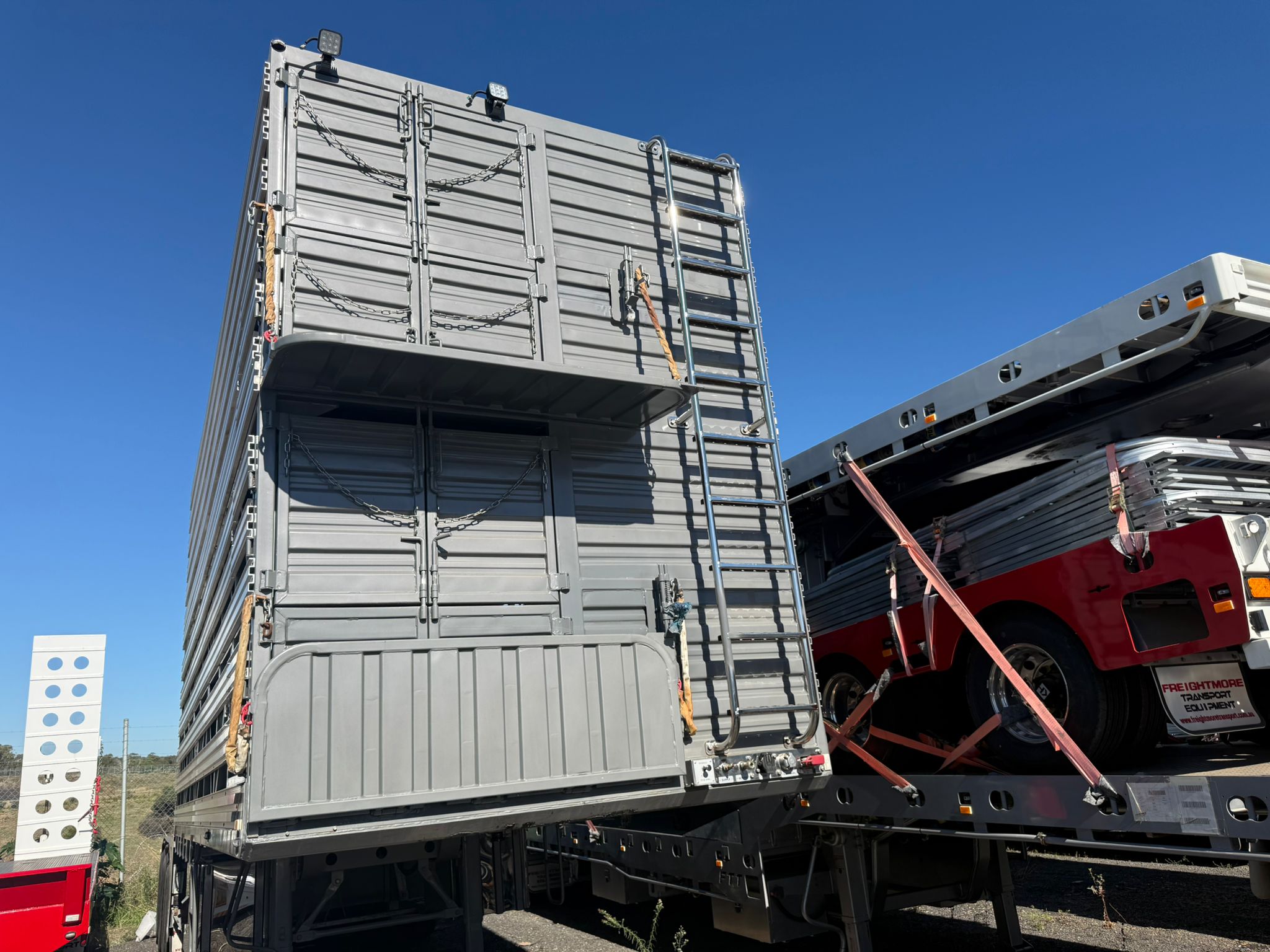

Rear Tail-Gate Standard ADR construction: Industrial C-250 channel – with multiple supports welded. Standard rear bumper bar installed (constructed from 100 x 100 x 6mm RHS)
Chassis Beams I-Beam Construction: 20mm thick Flange plates (350mPa), 6mm Webbing plate (450mPa) – Half the chassis webbing is double plated for heavy duty construction.
Landing Gear JOST A400 Landing Gear (JOST E100 Also used).
King-Pin JOST 50mm or 90mm available.
