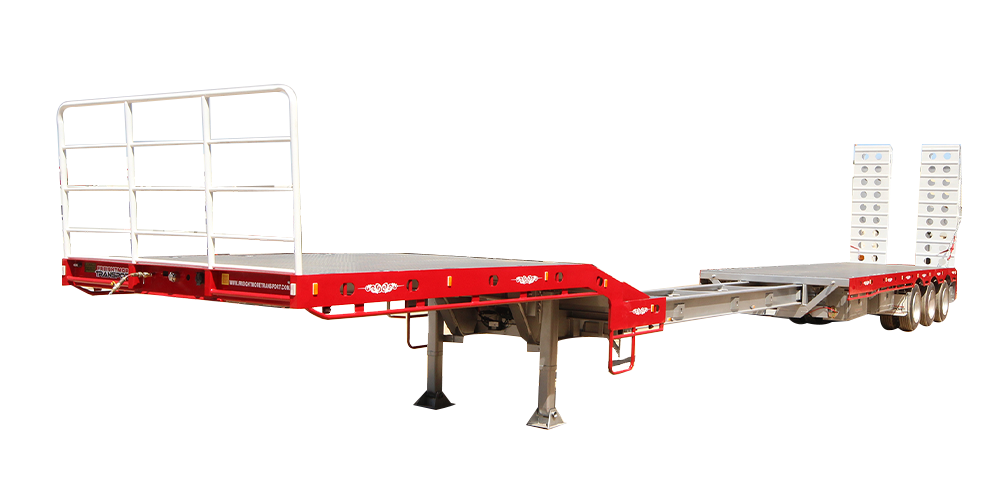

Drop Deck Extendable

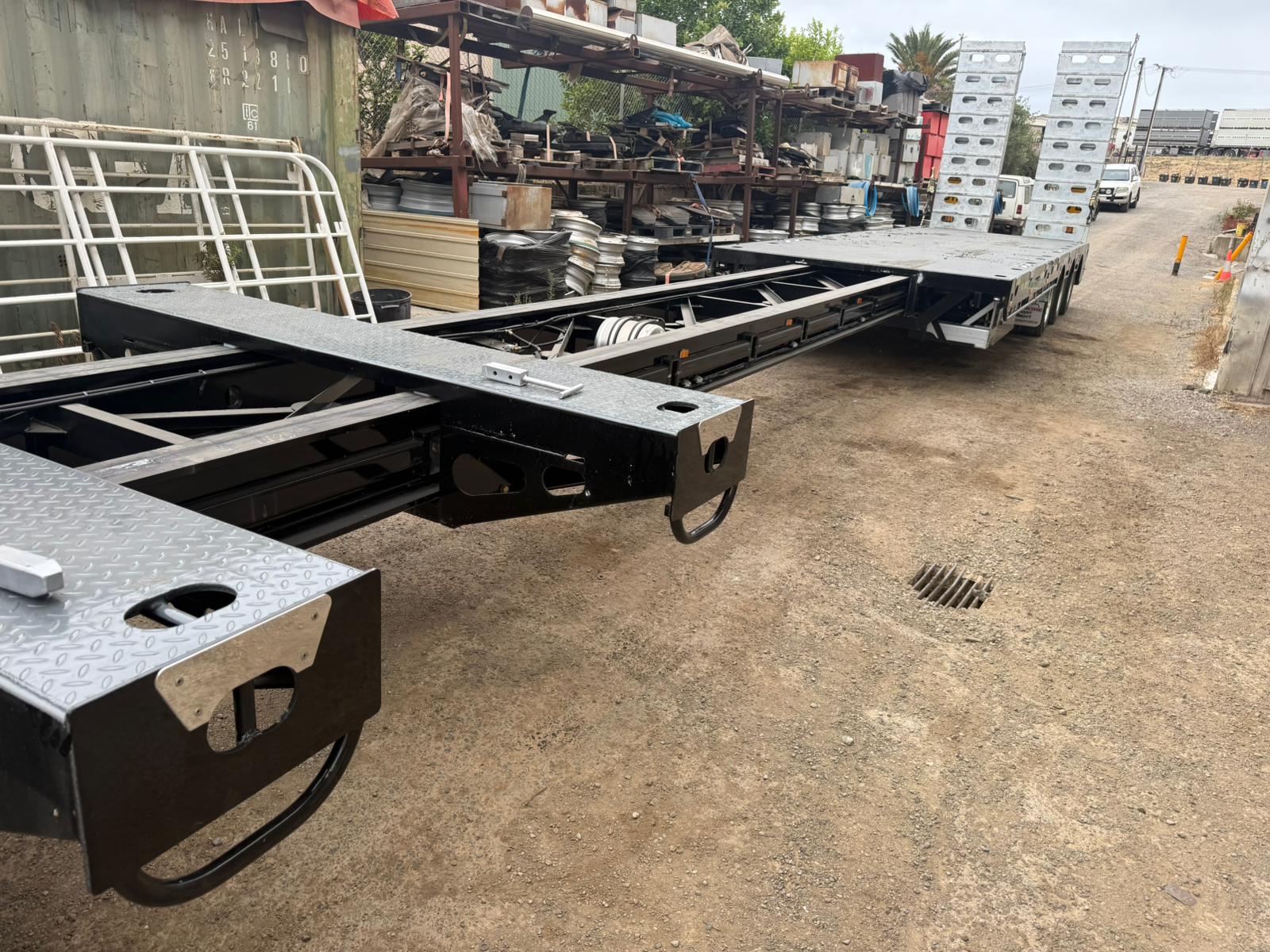

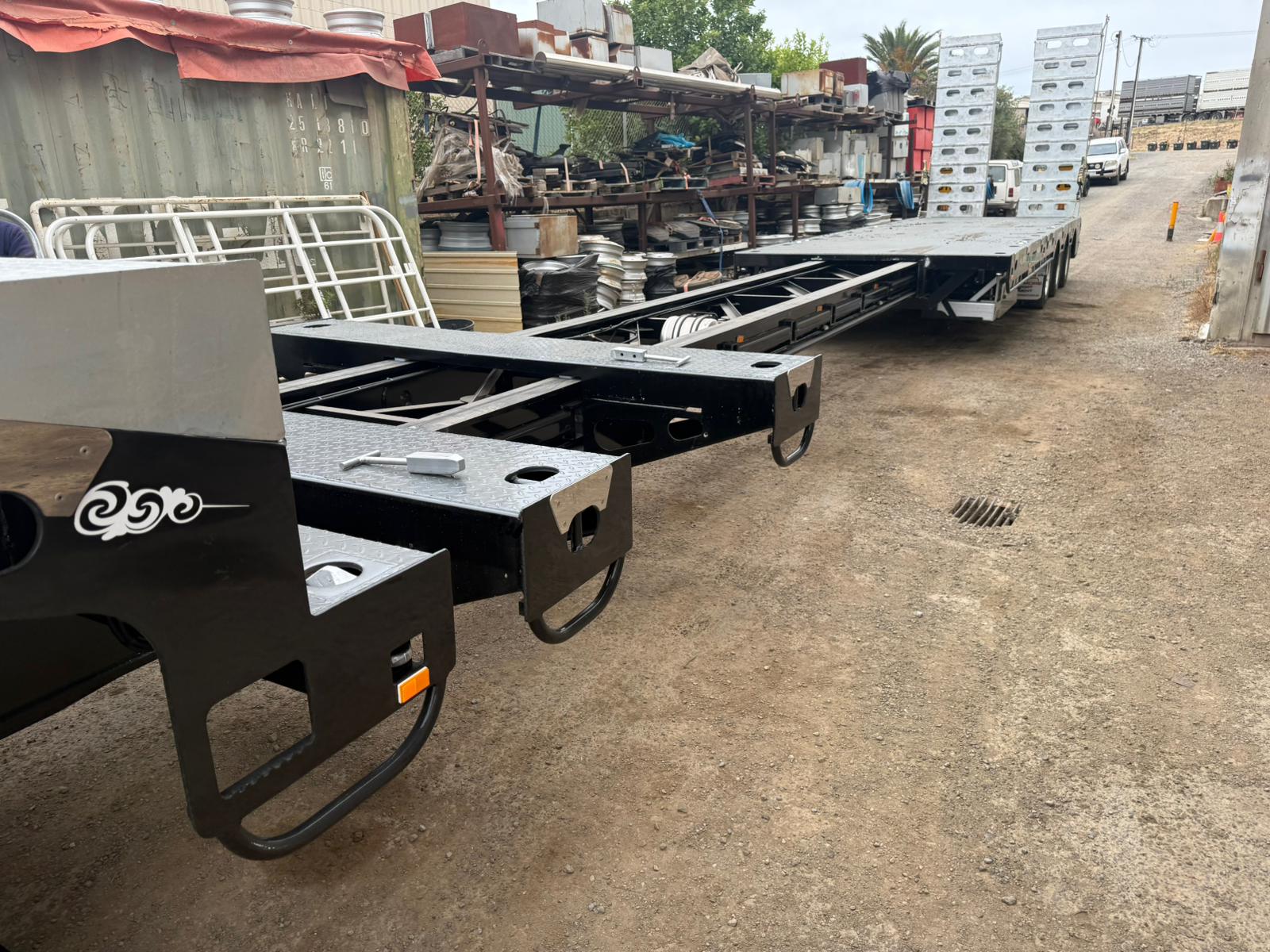

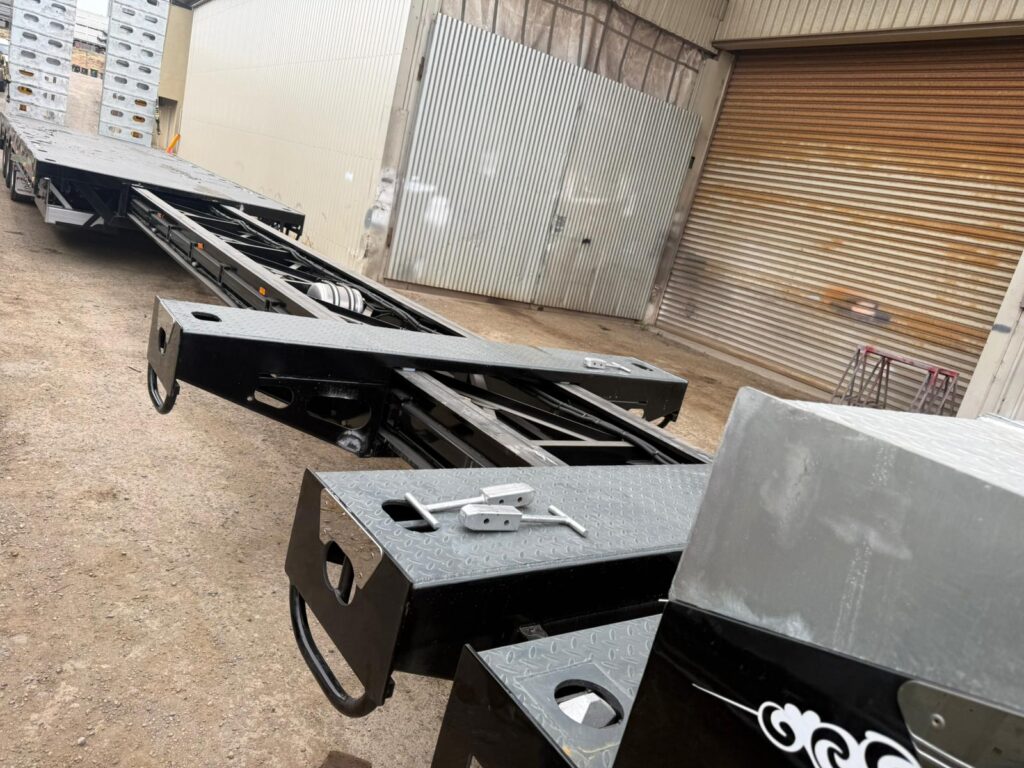

• Double welded I-Beam chassis construction allows for a tough and rigid frame. A strong inner sliding chassis rail allows for less payload reduction with increased length extension.

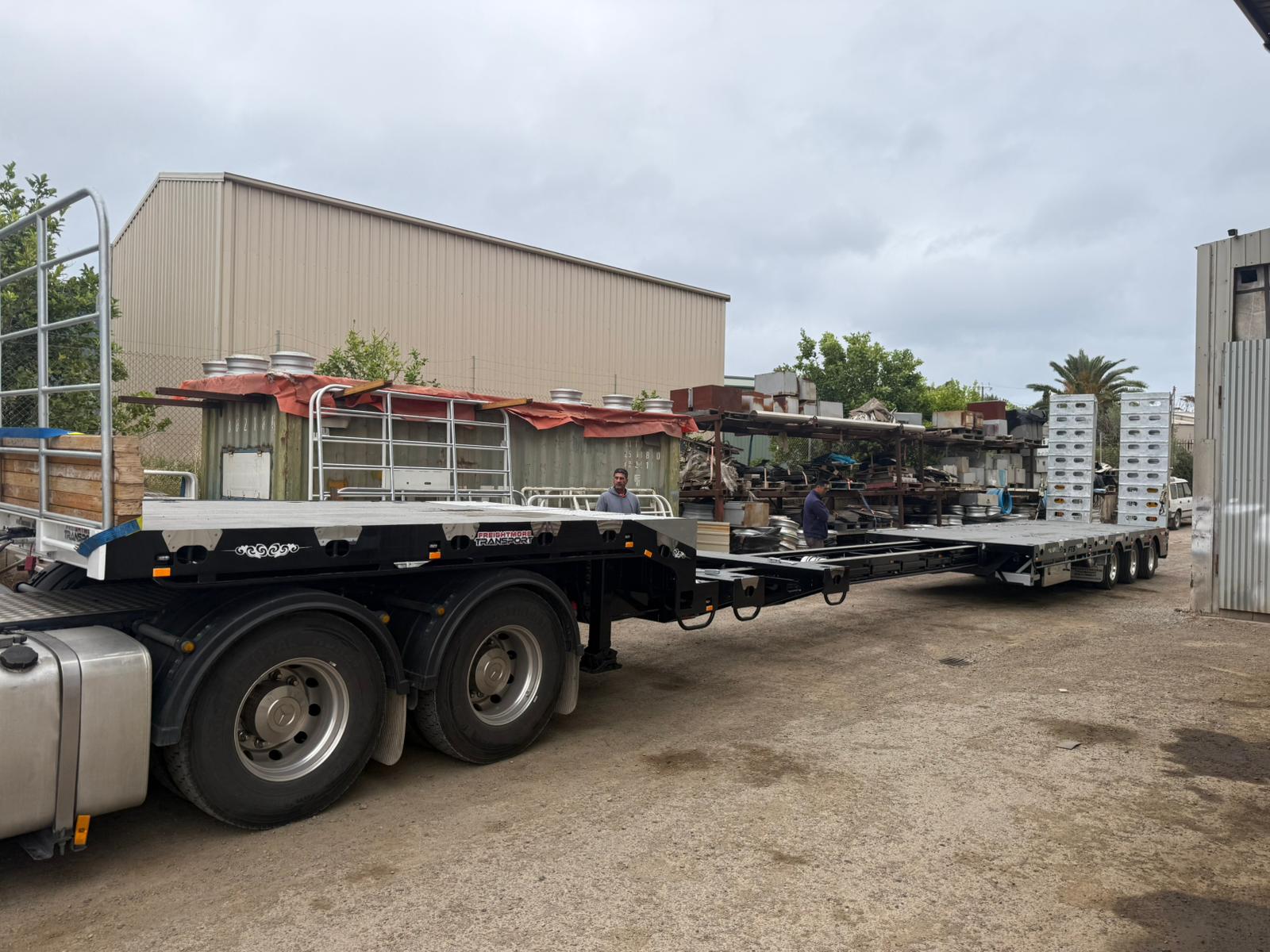

• Fully forklift and machine rated floors are standard. These units extend from 45Ft to 70Ft.

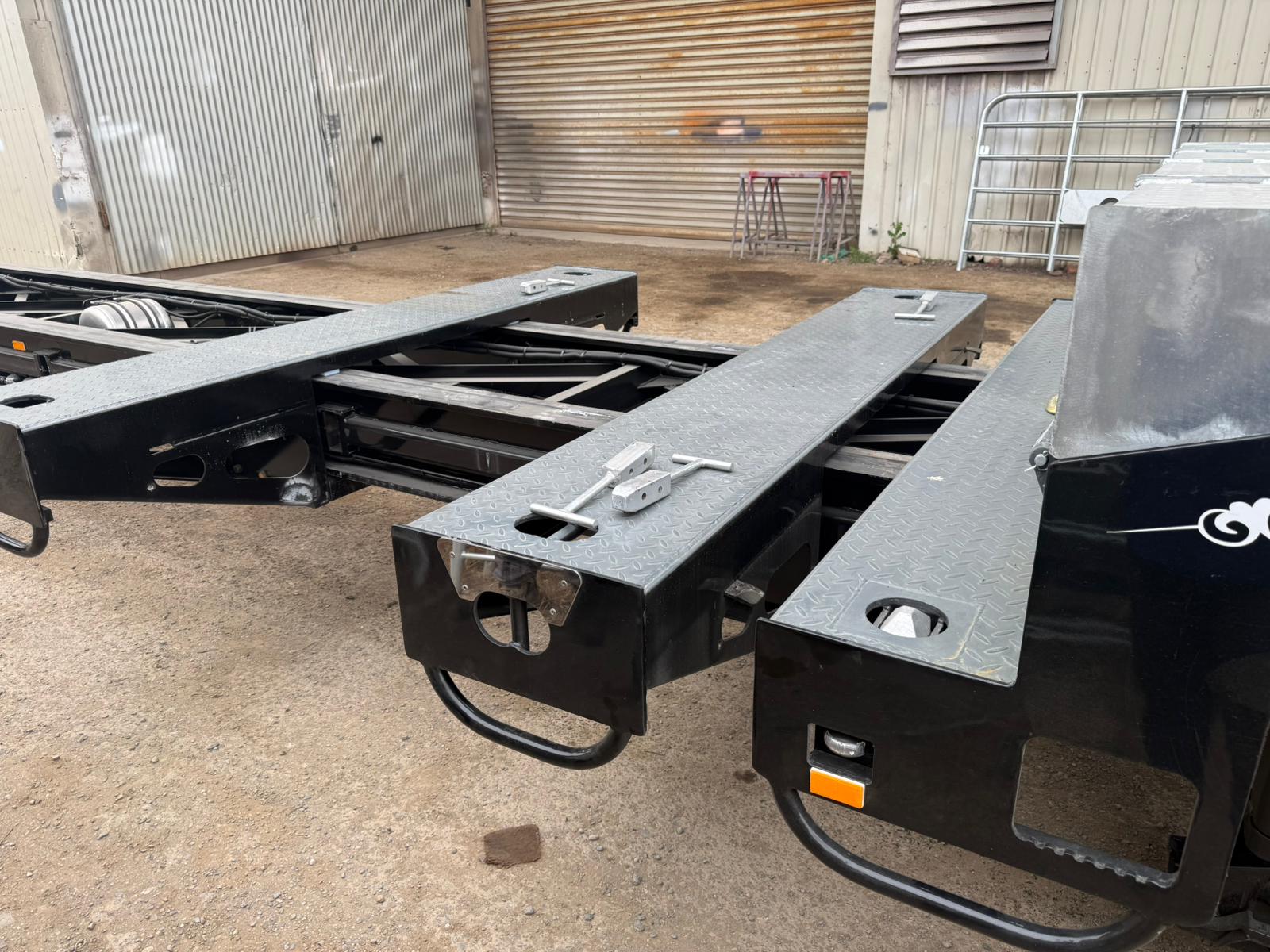

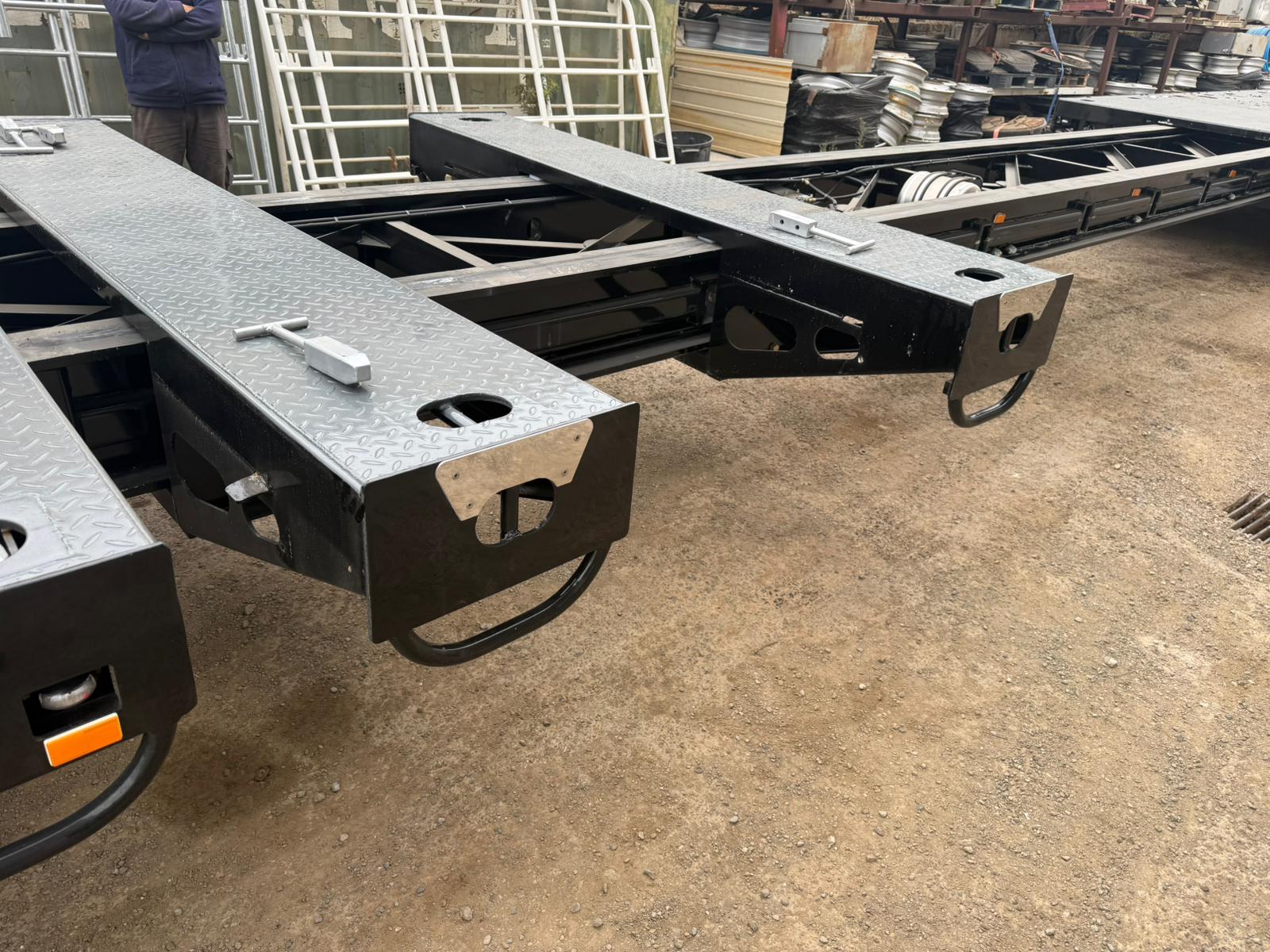

• 3-way twist locks
• Flip over ramps for upper deck
• Tie-down points
• 8mm thick laser cut side coaming
• 2 x toolboxes
• Sliding winches
• Road-train bracket
• LED side markers
• EBS equipped
• Winches & alloy wheels optional.

Length: Closed Length: 45 FT (13,720mm) – including the ramps
Extended Length: 70Ft (21,300mm) – including the ramps
Width: Exterior: 2500mm
Height (bottom deck) 20 inch axles: 1150mm
19.5 inch axles: 1080mm
15 inch axles: 990mm
(ATM) : 45 Tonnes
(GTM): 25 Tonnes
Tare Weight: Without Bi-Fold Ramps: 10.4 Tonnes
With Bi-Fold Ramps: 11.1 Tonnes

Side Coaming 8mm Thick Cold-Rolled sheet steel. Tensile Strength = 650mPa
Flooring 5mm Chequer-Plate flooring.
Skid-Plate 12mm Thick Skid-Plate, with two position bolt-on king pin boss-plates fitted as standard.
Road-Train Bracket 20mm thick folded C-Channel. With extra support gussets. Constructed from 350mPa mild steel.

• Heavy duty construction.
• Landing Gear JOST or similar
• King-Pin JOST or similar 50mm or 90mm as required.
